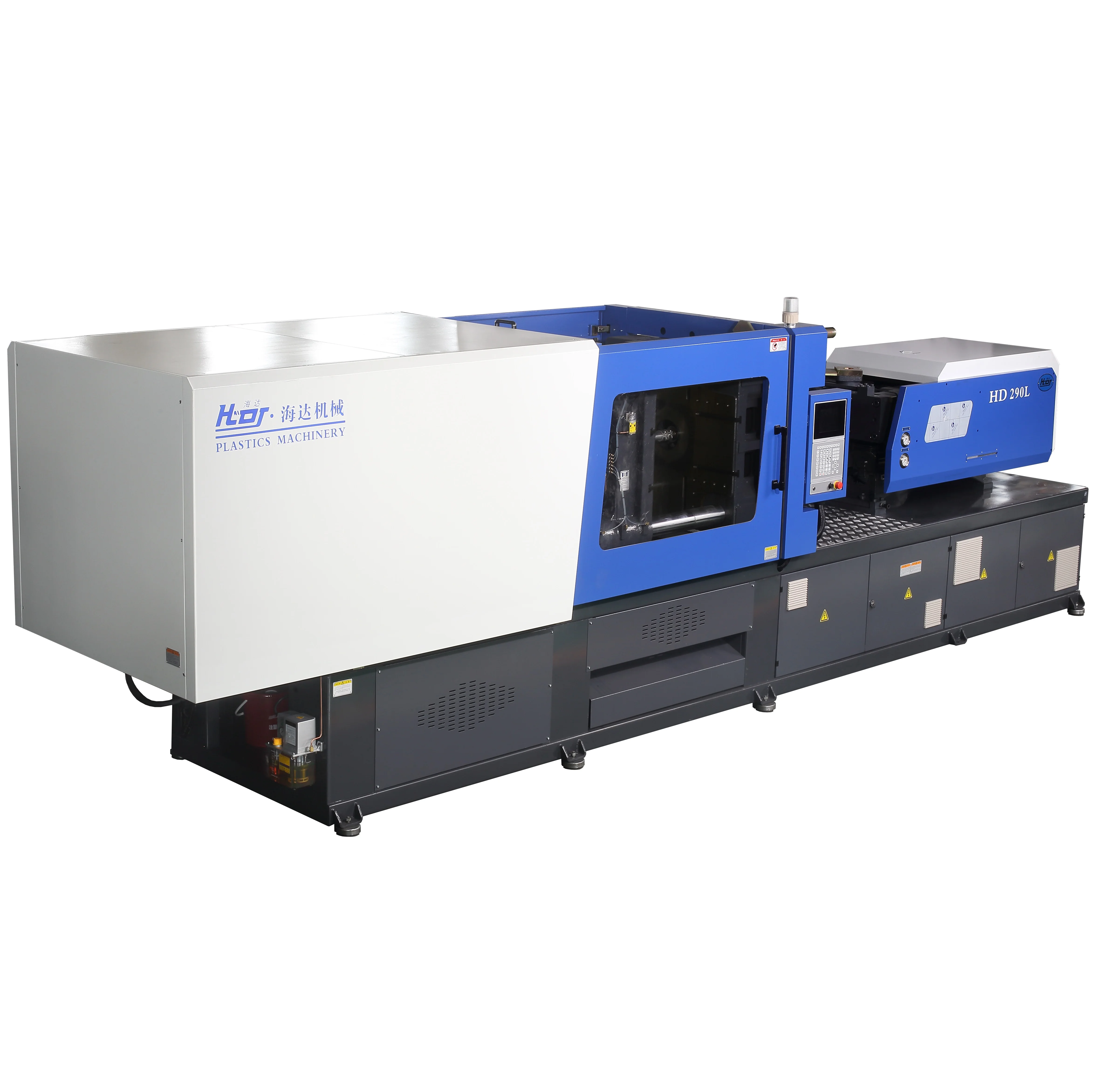

HAIDA HD290L 290 ton 300 ton full automatic plastic bottle cap making injection molding machine

  • 1 - 1 Sets
    $39,000.00
  • >=2 Sets
    $38,500.00
Clamping Force:
2900KN
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$39,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
630 mm
Distance between Tie Bars(Height)(mm):
630 mm
Condition:
New
Plastic Type:
Thermoplastic
Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, PE, HDPE/PP, ABS/PP, PE/PP
Ejector Stroke(mm):
165 mm
Ejector Force(kN):
70 kN
Theoretical Shot Volume(cm³):
929 cm³
Injection Rate (g/s):
280 g/s
Injection Weight (g):
845 g
Screw diameter (mm):
65 mm
Weight (KG):
9500
Machine Type:
Hydraulic
Type:
Preform Injection
Place of Origin:
Zhejiang, China
Open Stroke(mm):
610 mm
Model Number:
HD290L
Brand Name:
HAIDA
Automatic:
Yes
Certification:
CE/ISO9001
Power (kW):
19 kW
Warranty:
1 YEAR, One Year and long-term Technical Support
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
High Productivity
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Brazil, Thailand, Argentina, South Korea, South Africa, Uzbekistan
Showroom Location:
Brazil, Thailand, Argentina, South Africa, Uzbekistan
Product name:
Plastic Injection Moulding Machine
Voltage:
380V/ 50Hz 3P+N+E (alterable)
Function:
plastic Products Making
Distance between Tie Bars:
630*630
Clamping Force (kN):
2900 kN
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN PALLET and WOODEN BOX
Port
Ningbo China Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 To be negotiated
Video Description
Machine Description
1.Specially made PET screw highly increases the plasticizing speedand shot weight, lowers the plasticizing speed and show weight,lowers the plasticizing temperature and AA value, also lowers theshearing of perform, while achieves better transparency.
2.The servo motor control system can save energy by 30% ~ 50%.
3.Different models are available for the choice of customers,Max. shot weight: 3615g
4.Increasing eject force ejector stroke, accepts PET perform molding.
5.Whole closed safe door meets the requirement of sanitary and thermo-control.
6.Hot runner system interface is included.
7.Optional with pressure holding and charge at the same time, whichcan increase the output by 15% ~ 25%.
8.Whole production project can be provided, including moulds,injection molding machine, PET stretch blow molding machine andauxiliary equipments.
Increase the length and diameter of screw barrel, increase the storage capacity and improve the plasticization uniformity
The new L series transforms the base of the original screw flange into a bridge type to increase the strength and stiffness of the equipment base.

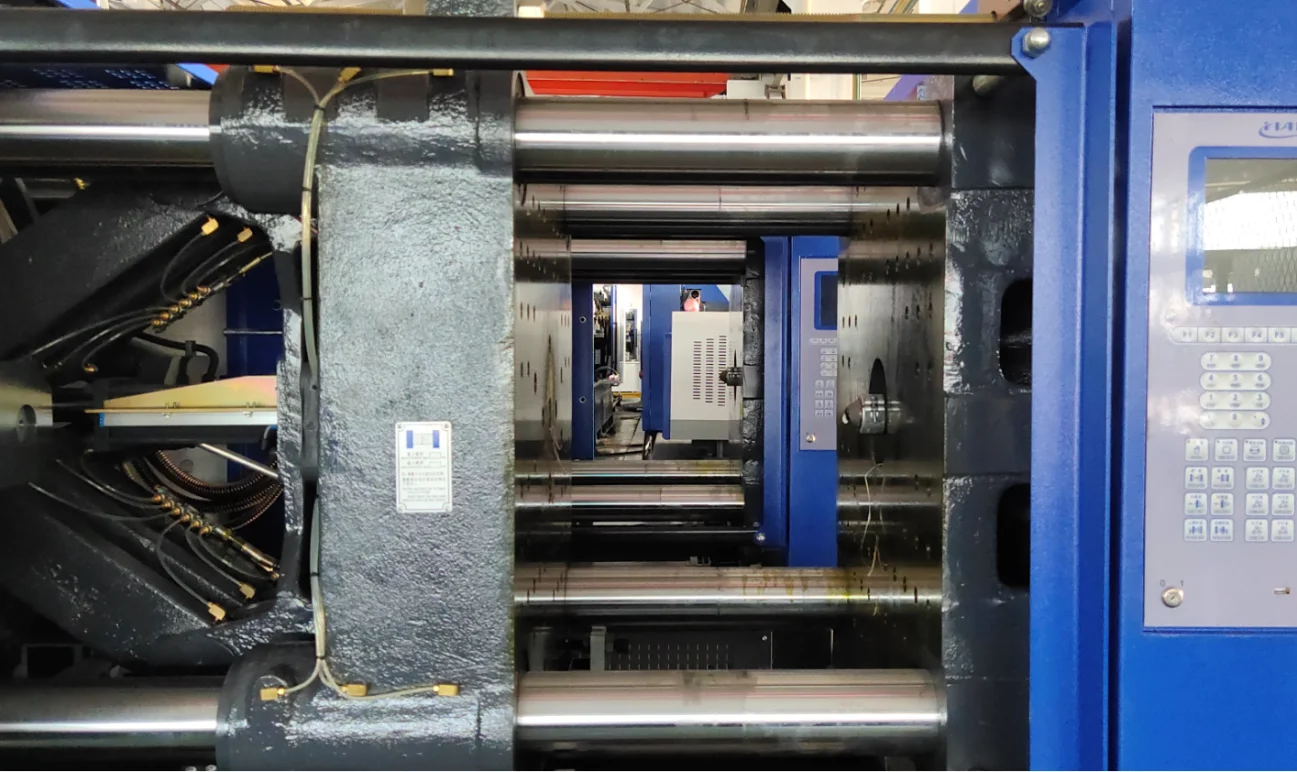

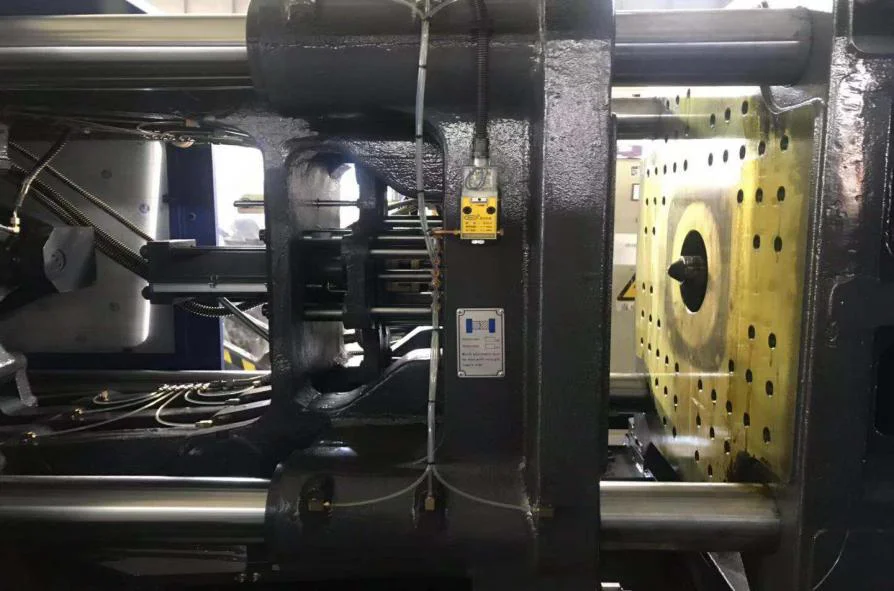

Thickening of the three platens, reduces the deformation of the platen when clamping, and makes the clamping more stable.Enlarging the Spacing of Tie bar to Improve the Capacitance of mold

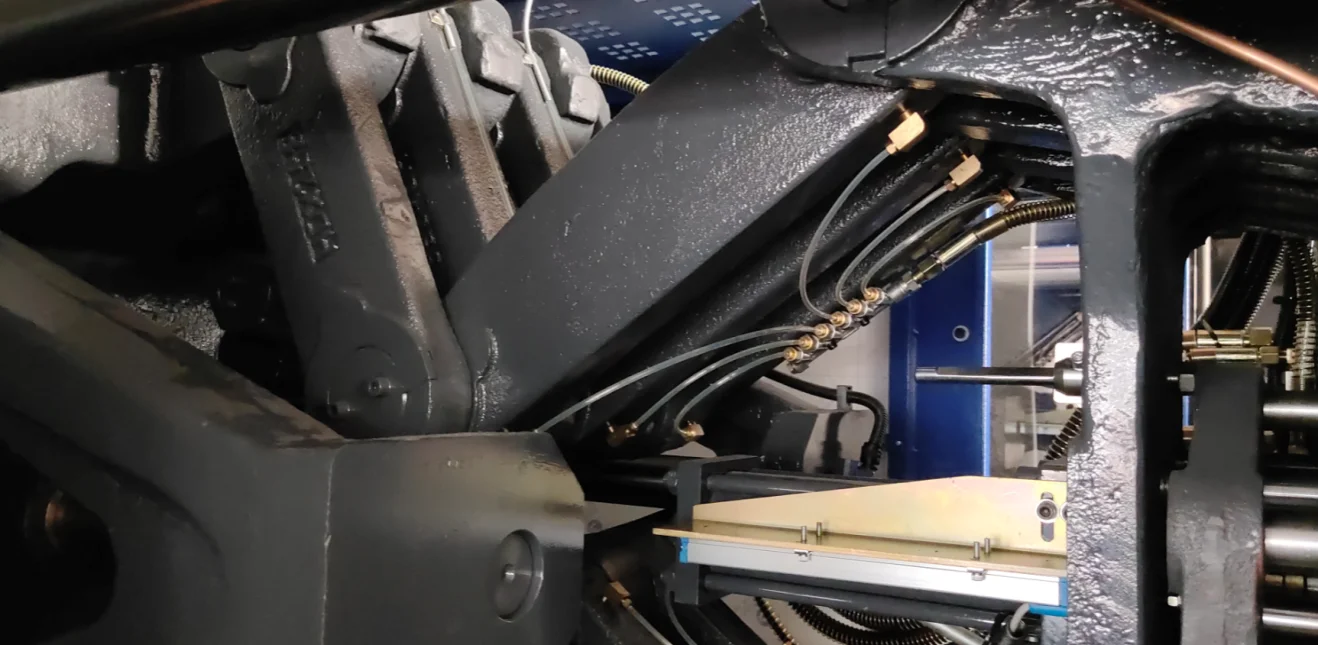

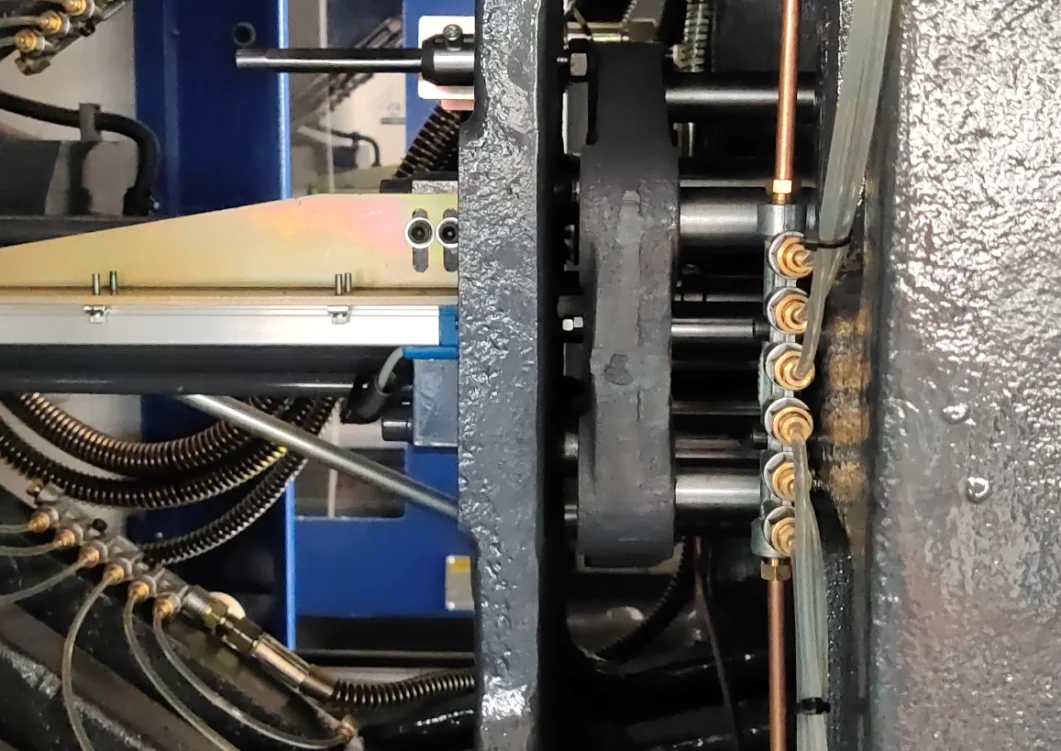

Optimizing the connection structure of three platens and link to further reduce the wear of the platens joints

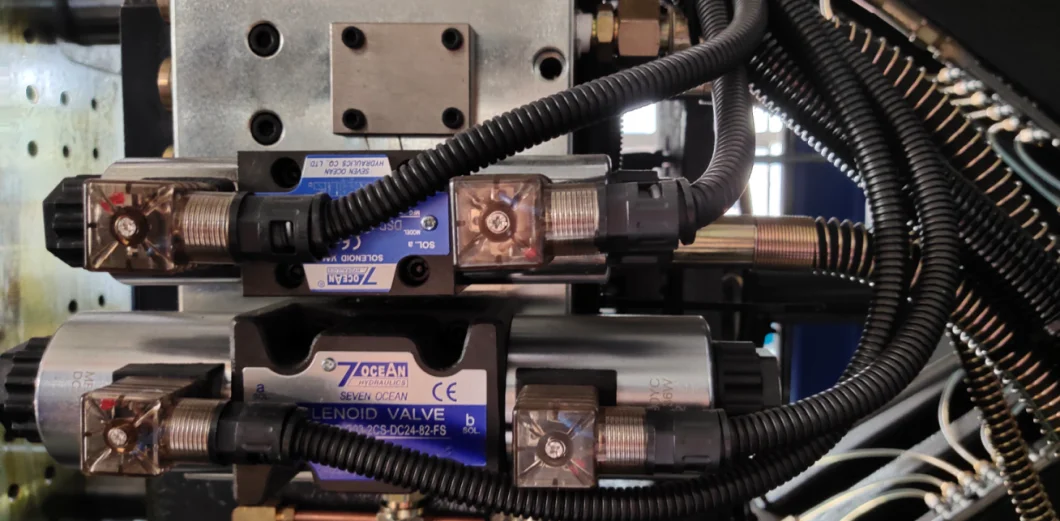

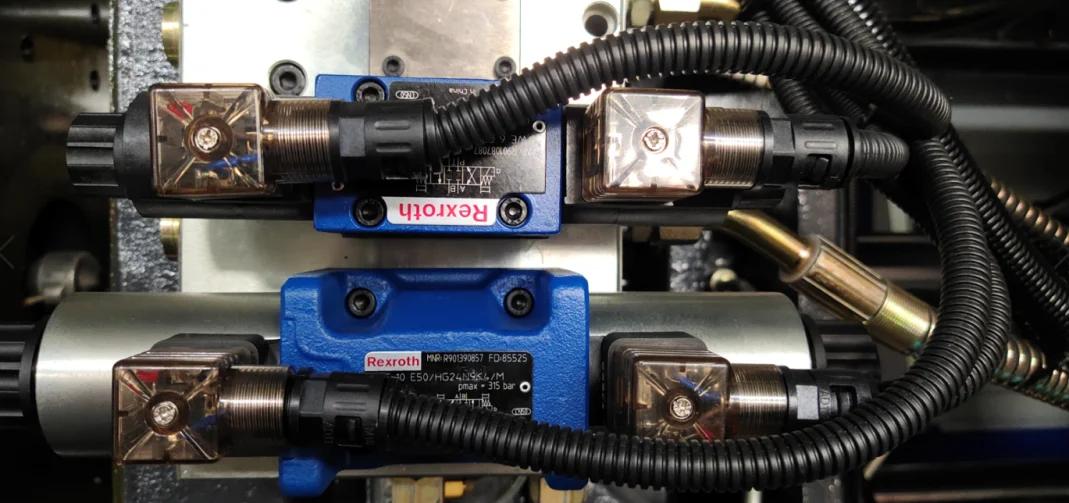

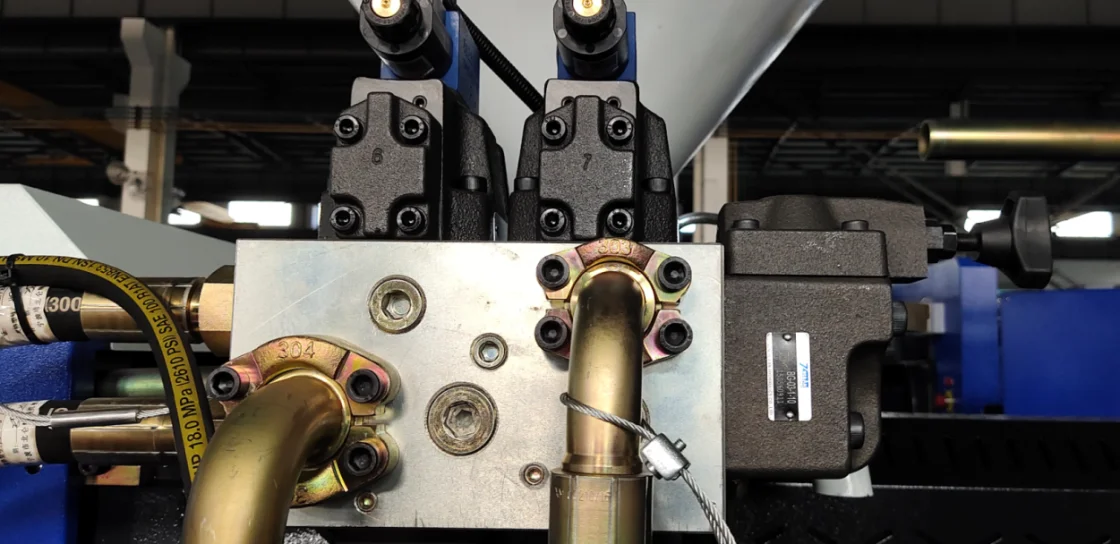

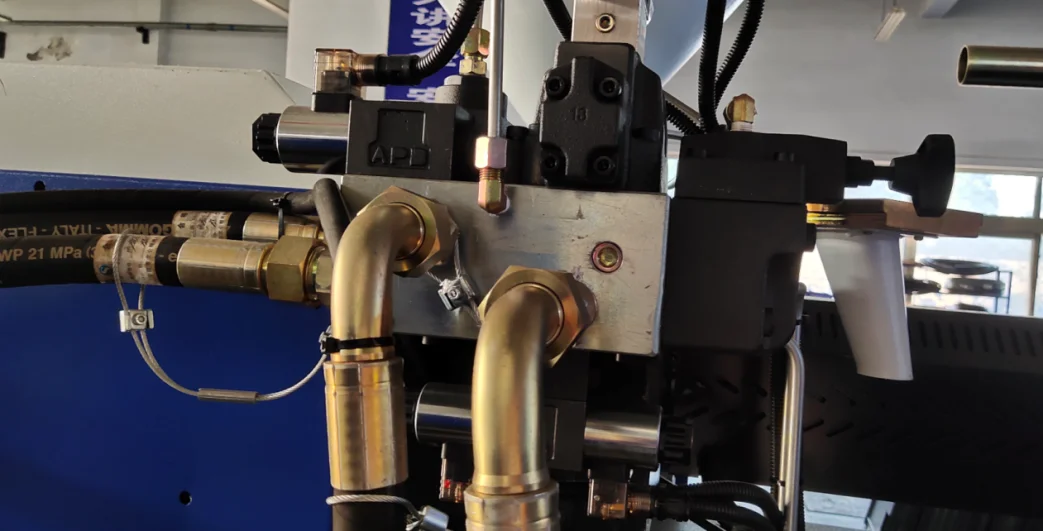

Hydraulic directional valve upgraded to Rexroth in Germany
Increase the diameter of hydraulic tubing and increase the hydraulic pressure at the same time

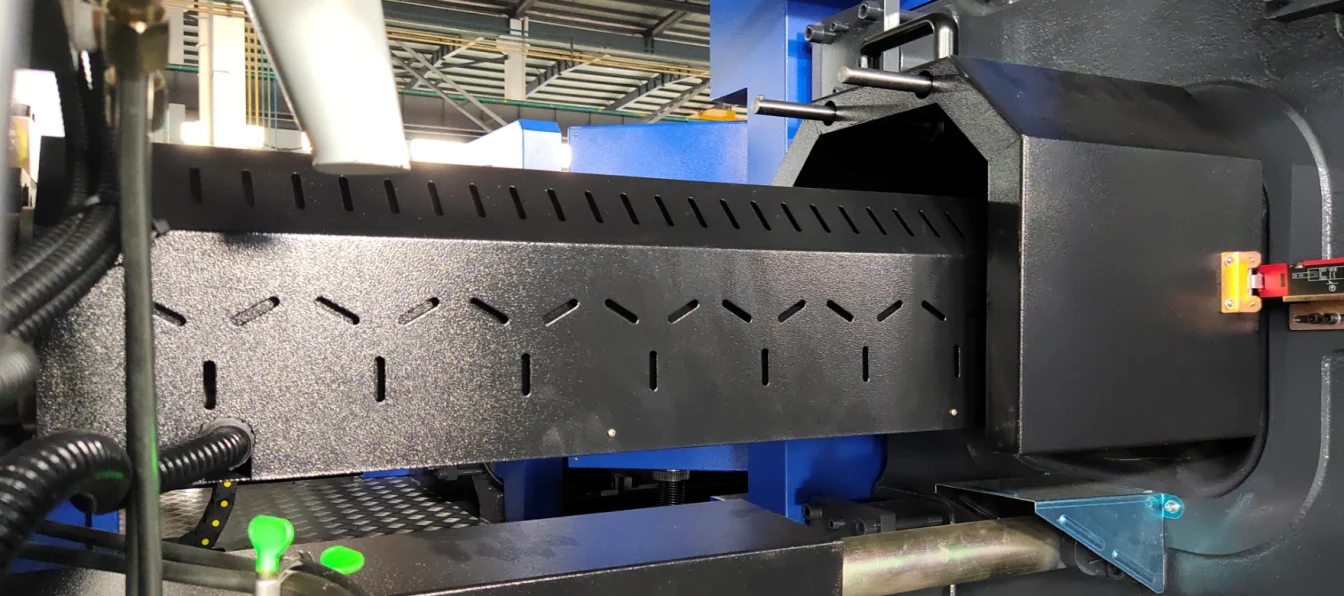

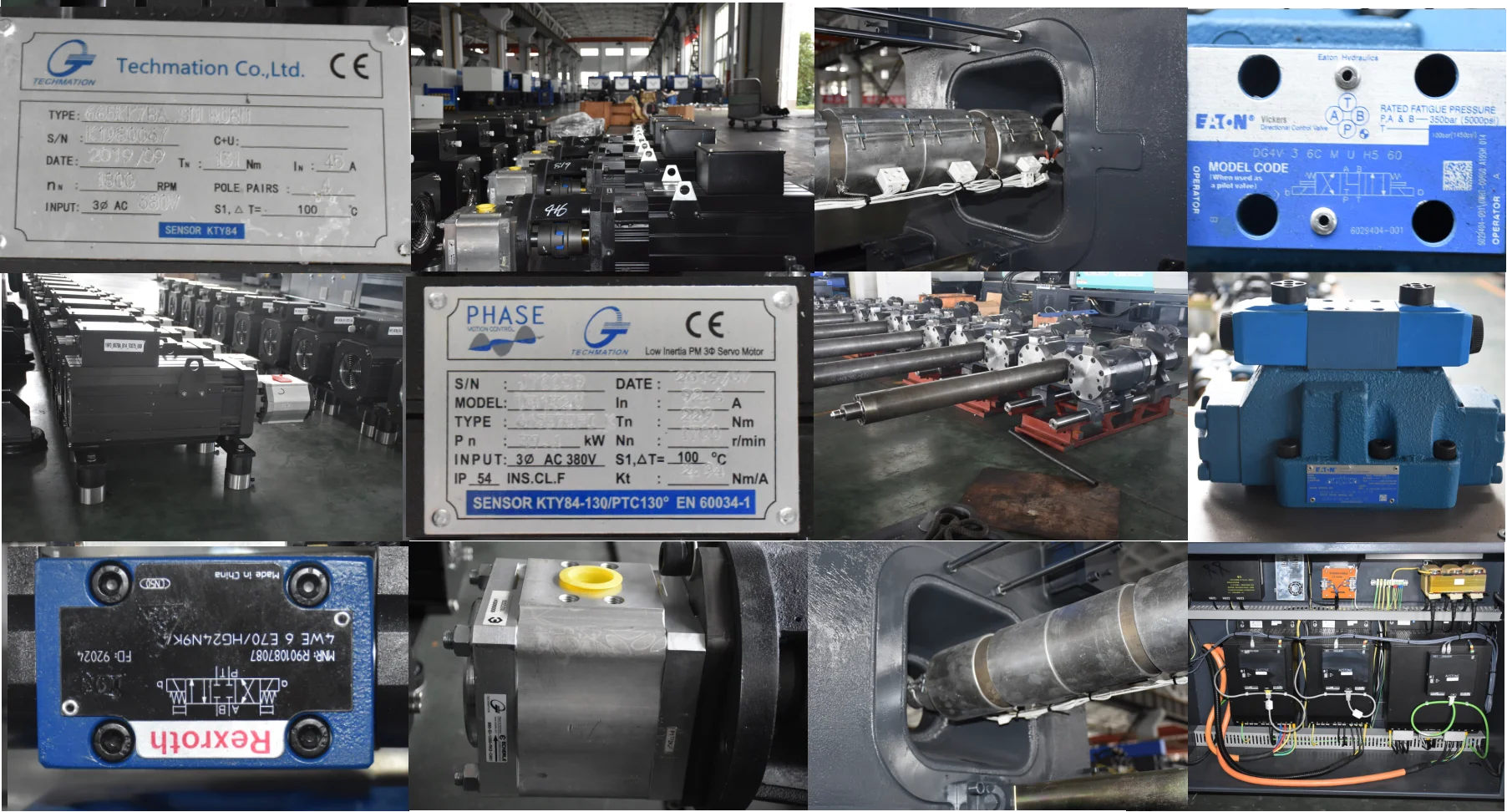

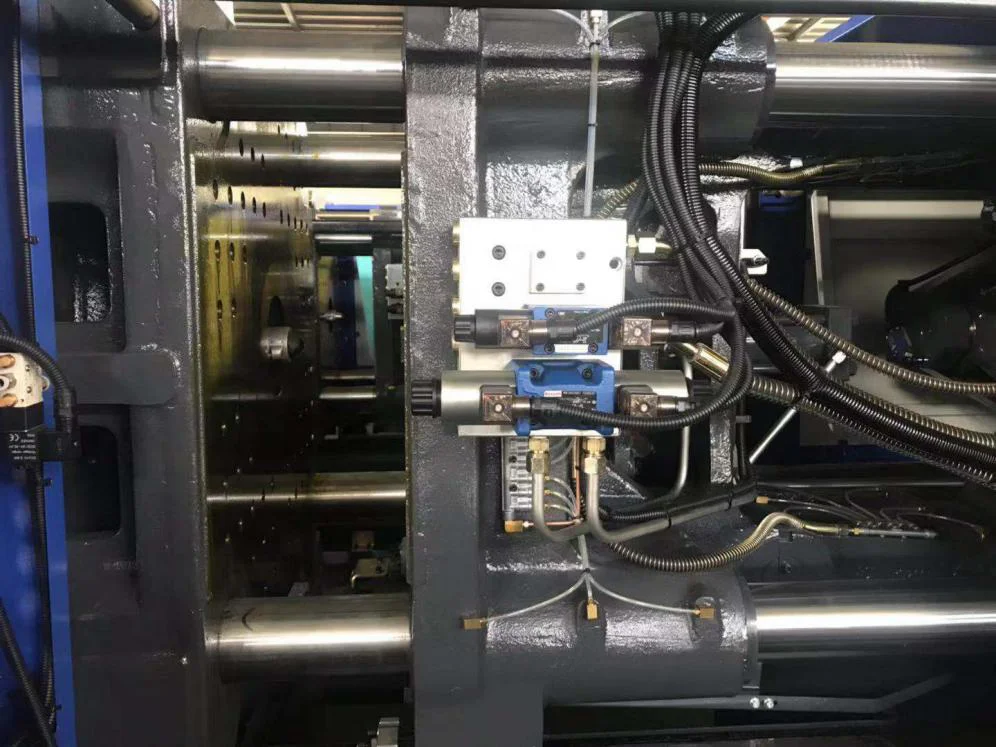

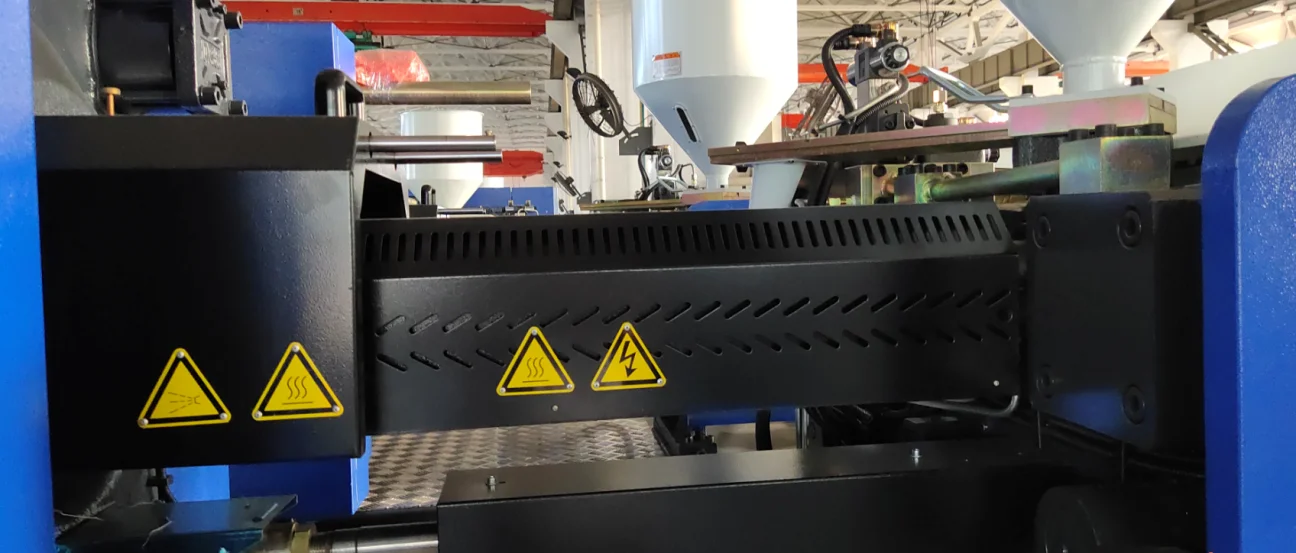

Machine detail
Product packaging
Related Products
                      Model
                            Shot   Weight  (g)
Space  Between              bars             (mm)
                           Model

Shot   Weight   (g)
Space   Between              bars             (mm)
HD50L
50~66
285*285
HD70L
81~135
310*310
