Plastic Paint Bucket Containers Box Making Machine Plastic Crate Injection Molding Moulding Machine for Plastic Fruit Basket

FOB Reference Price:Get Latest Price
$42,600.00 - $53,400.00 / Piece | 1 Piece/Pieces (Min. Order)
Clamping Force:
4500kN
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Samples:
$53,400.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
780 mm
Distance between Tie Bars(Height)(mm):
780 mm
Condition:
New
Plastic Type:
Thermoplastic
Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Ejector Stroke(mm):
200 mm
Ejector Force(kN):
126 kN
Theoretical Shot Volume(cm³):
1910 cm³
Injection Rate (g/s):
523 g/s
Injection Weight (g):
1738 g
Screw diameter (mm):
80 mm
Weight (KG):
16500
Machine Type:
Hydraulic
Type:
Preform Injection
Place of Origin:
Zhejiang, China
Open Stroke(mm):
750 mm
Model Number:
HD450L
Brand Name:
Haida
Automatic:
Yes
Certification:
CE,ISO9001
Power (kW):
71 kW
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
High-accuracy
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Brazil, Russia, Thailand, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
Brazil, Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Opening Stroke:
750mm
Product name:
Plastic Injection Moulding Machine
Machine weight:
16.5T
Machine dimension(L*W*H):
8.49*2.23*2.2m
Screw diameter:
75/80/85mm
SCREW L/D RATIO:
22.9/21.5/20.3
Voltage:
380V/ 50Hz 3P+N+E (alterable)
Heating power:
41kW
MOULD THICKNESS:
300-780mm
Ejector Stroke:
200mm
Clamping Force (kN):
4500 kN
Distance between Tie Bars:
780*780mm
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden Pallet
Port
Ningbo
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 45 To be negotiated
Video Description
Product Description

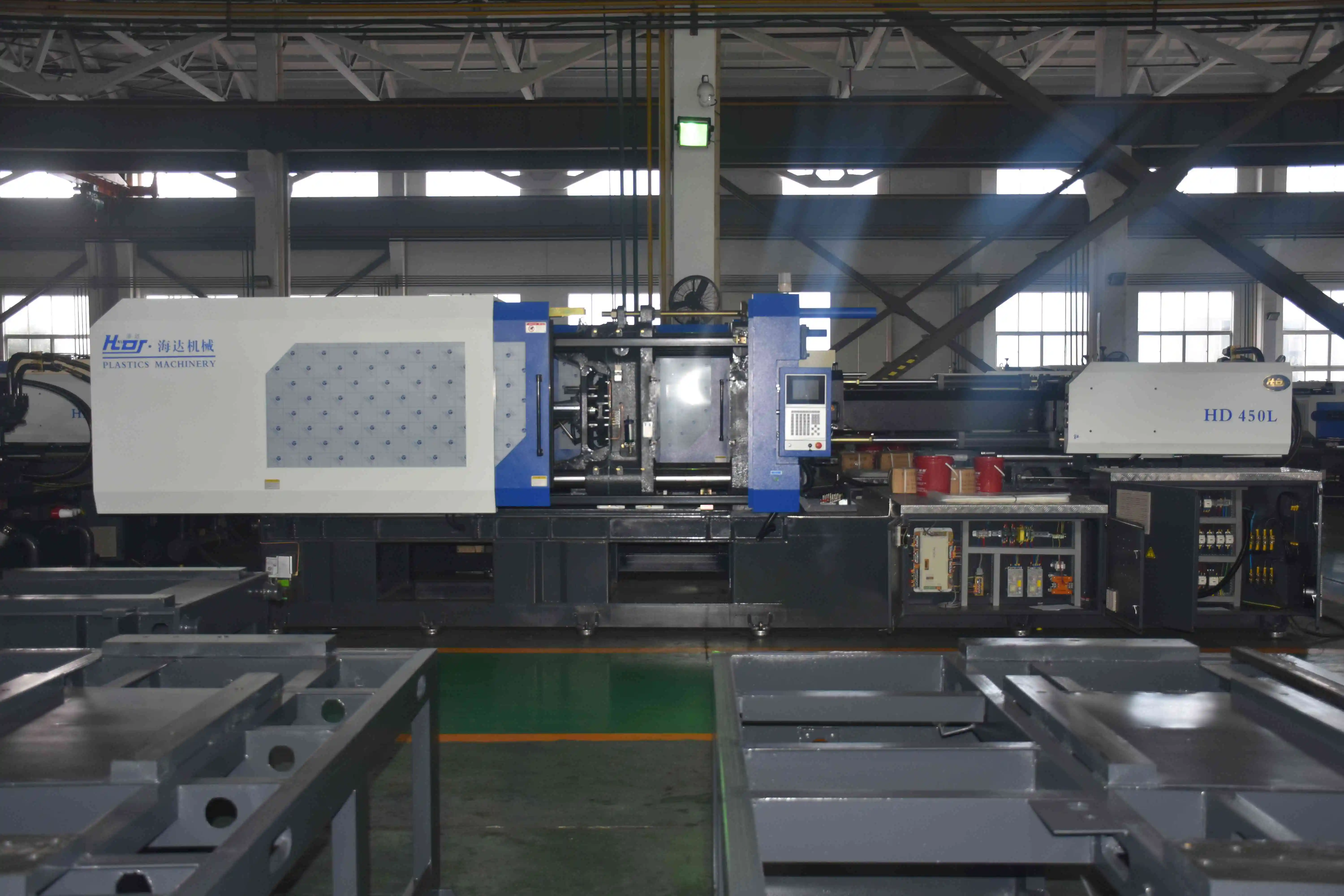

Plastic Paint Bucket Containers Box Making Machine
Plastic Crate Injection Molding Moulding Machine for Plastic Fruit Basket

Broad Scope Of Application

For More Than 95% Of The Injection Molding Products

The Stability Of The Mature And

Reliable

Durable
Running Stability

High Performance To Price Ratio

Concise And Effective
Rapid Flexible
Manipulation Of The Simplified
Simple Maintenance
parameters
ITEM
UNIT
DATA
Injection Unit
Screw Diameter
mm
75
80
85
Screw L/D Ratio
L/D
22.9
21.5
20.3
Injection Volume
cm3
1679
1910
2156
Shot Weight
g
1528
1738
1962
Injection Pressure
Mpa
186
164
145
Clamping Unit
Clamping Force
kN
4500
Opening Stroke
mm
750
Mould Thickness(Min-Max)
mm
300-780
Space Between Tie-Bars
mm
780×780
Ejector Force
kN
126
Ejector Stroke
mm
200
General
Motor Power
kW
41
Heater
kW
30
Pump Pressure
Mpa
16
Machine Dimension
m
8.49×2.23×2.20
Machine Weight
T
16.5
Mould Orientation Ring Diameter
mm
ф200
Nozzle Radius
mm
SR15

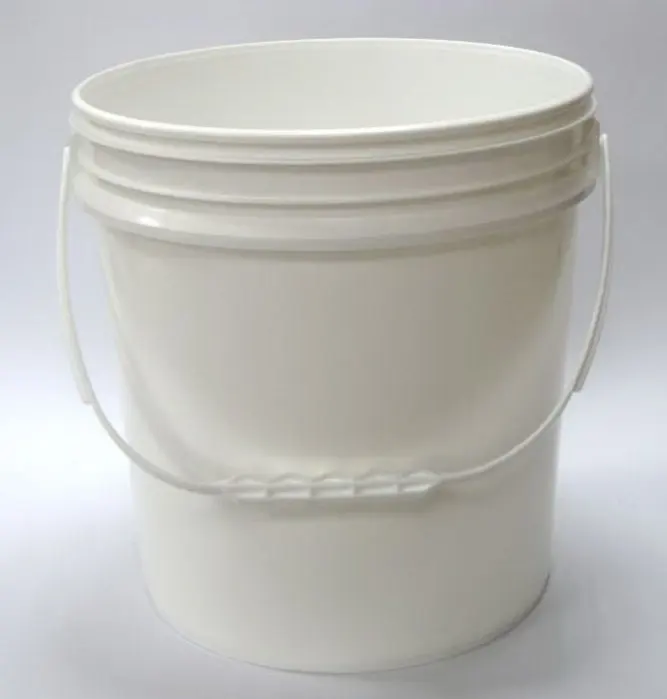

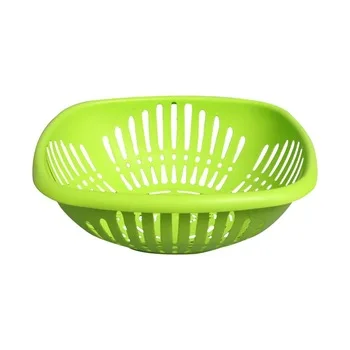

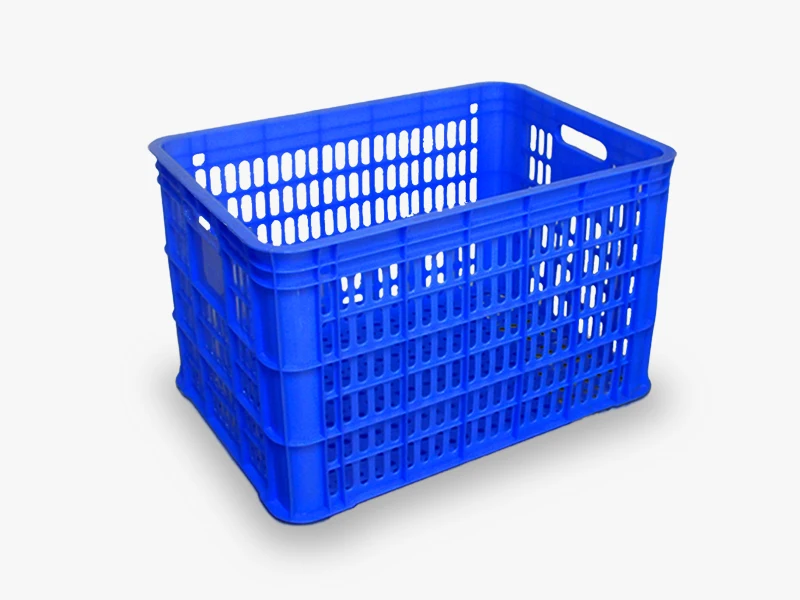

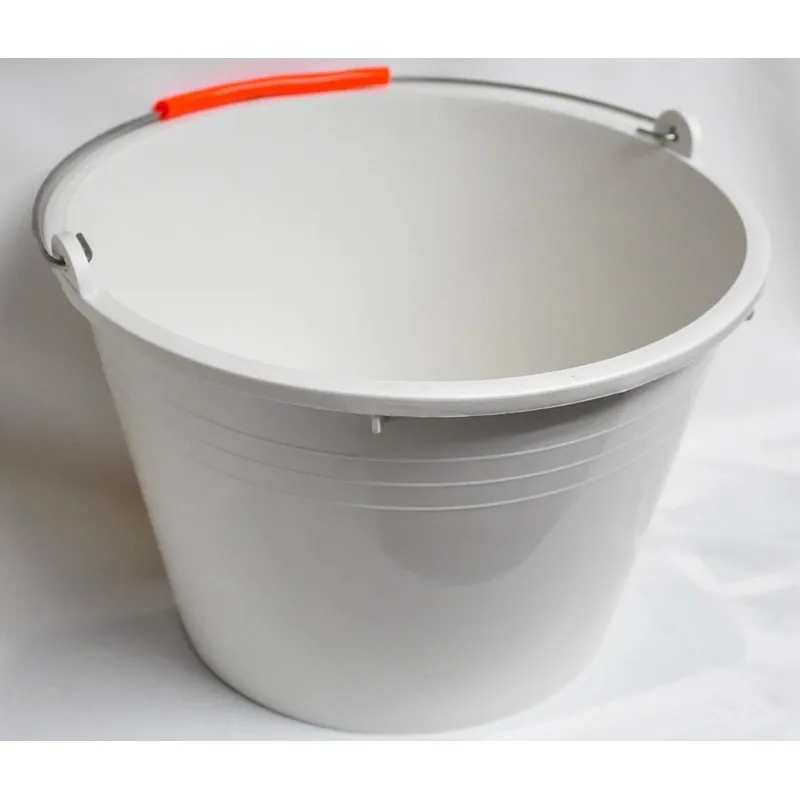

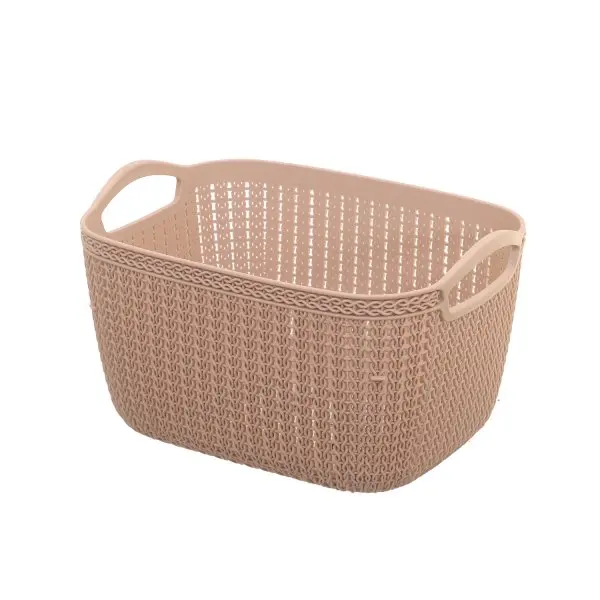

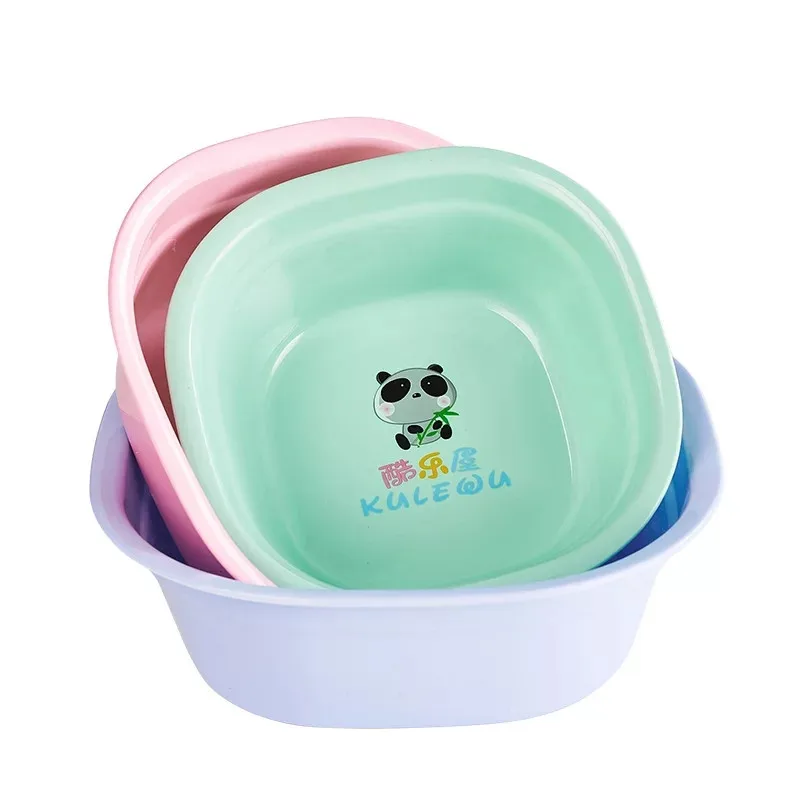

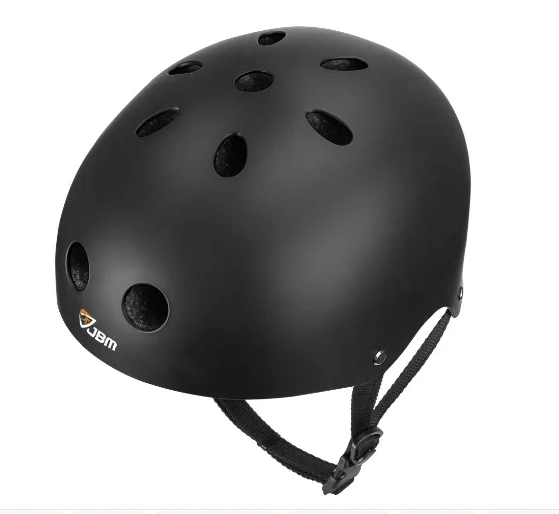

Applications
Detailed Images

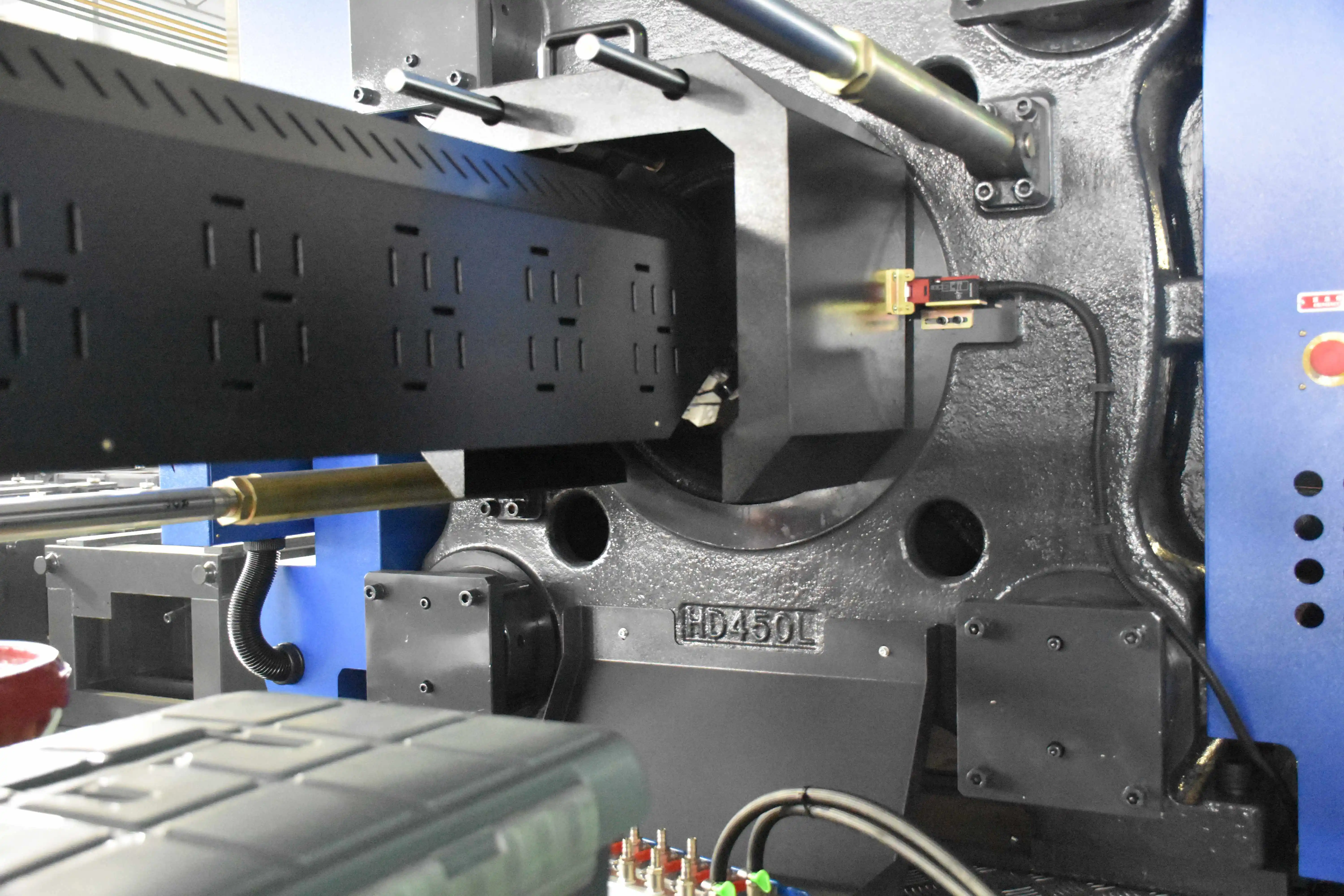

Injection System

Injection Molding Is Stable,Easy Adjustment
Injection parts with double guide pillar support structure, smooth two cylinder injection device, shoot and two improved nozzle adjustment easy, can be operated by simple adjustment of the nozzle and the mould center. Injection unit 3 different screw diameter in each group, for customers to choose, fully meet the requirements of personalized processing technology.

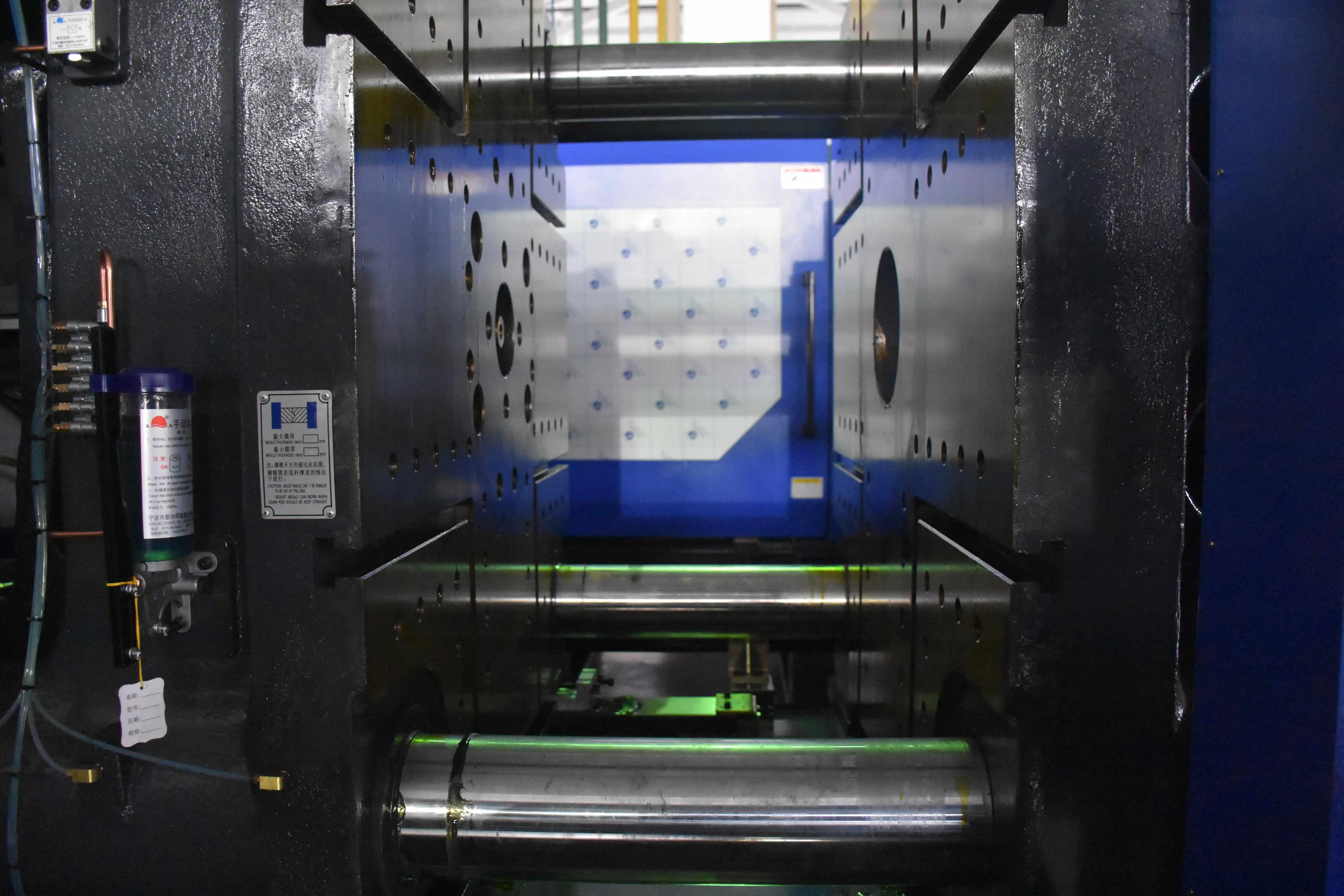

Clamping Systems

Efficient And Accurate Positioning
Optimization design of oblique line of five fulcrum hyperbolic elbow mold clamping mechanism, power transfer effectively, ensure the process of high speed response. Rapid mold-shut platform but also shorten the molding cycle, improve the production efficiency; Low pressure mold protection system; A variety of hydraulic ejector mode; Can transfer the template support structure; Rod special craft processing, strength and reliable.

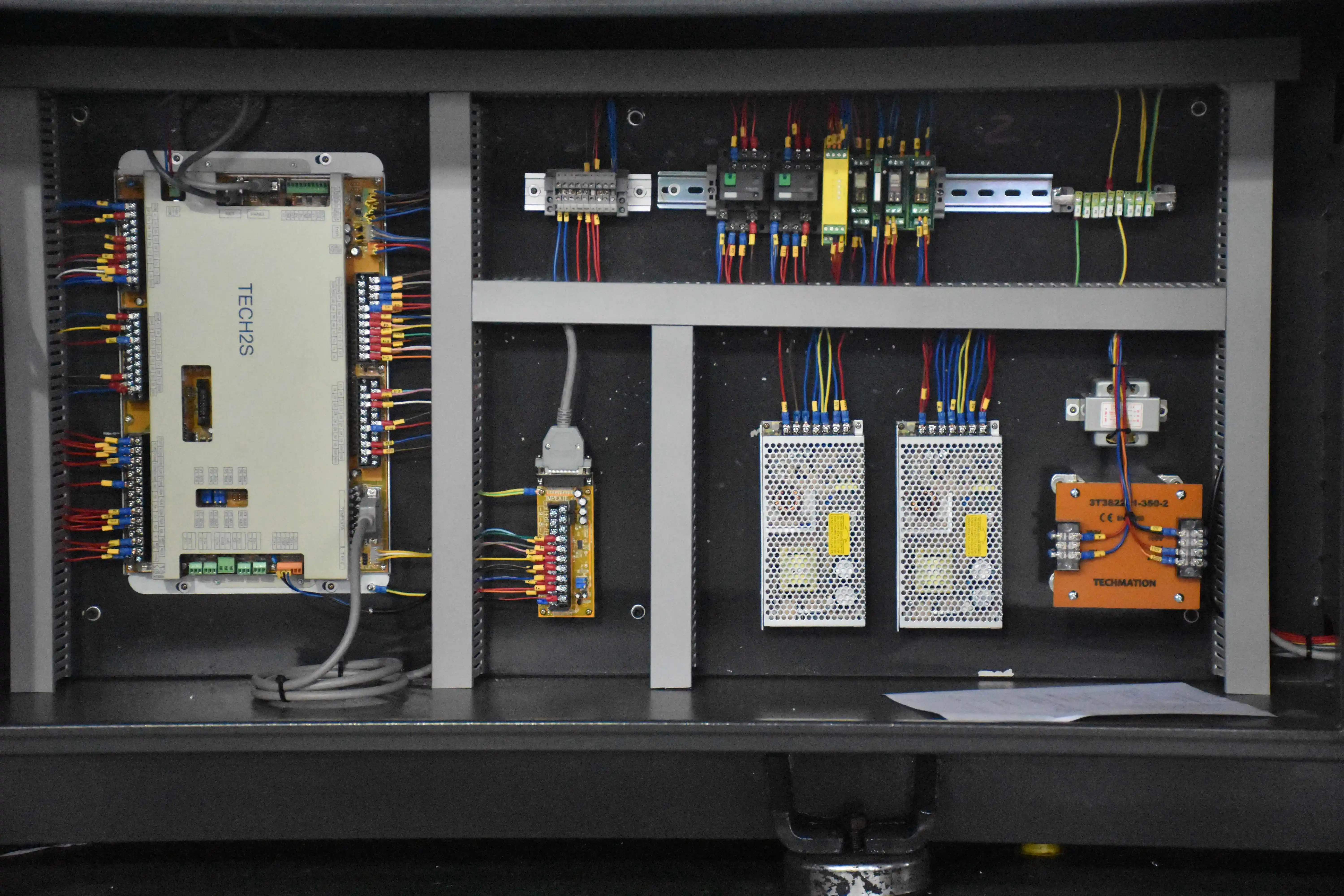

Control System

All Monitoring, Full Control
Color LCD display; Abnormal alarm function; Special injection molding machine controller, the double CPU control, control and display CPU are relatively independent, and reliable; Stop button QianHouMen economy; Realtime monitor shows every action operation situation; The system hardware I/O testing function; Special injection molding machine controller; Cylinder temperature deviation corrections; High precision displacement sensor system.

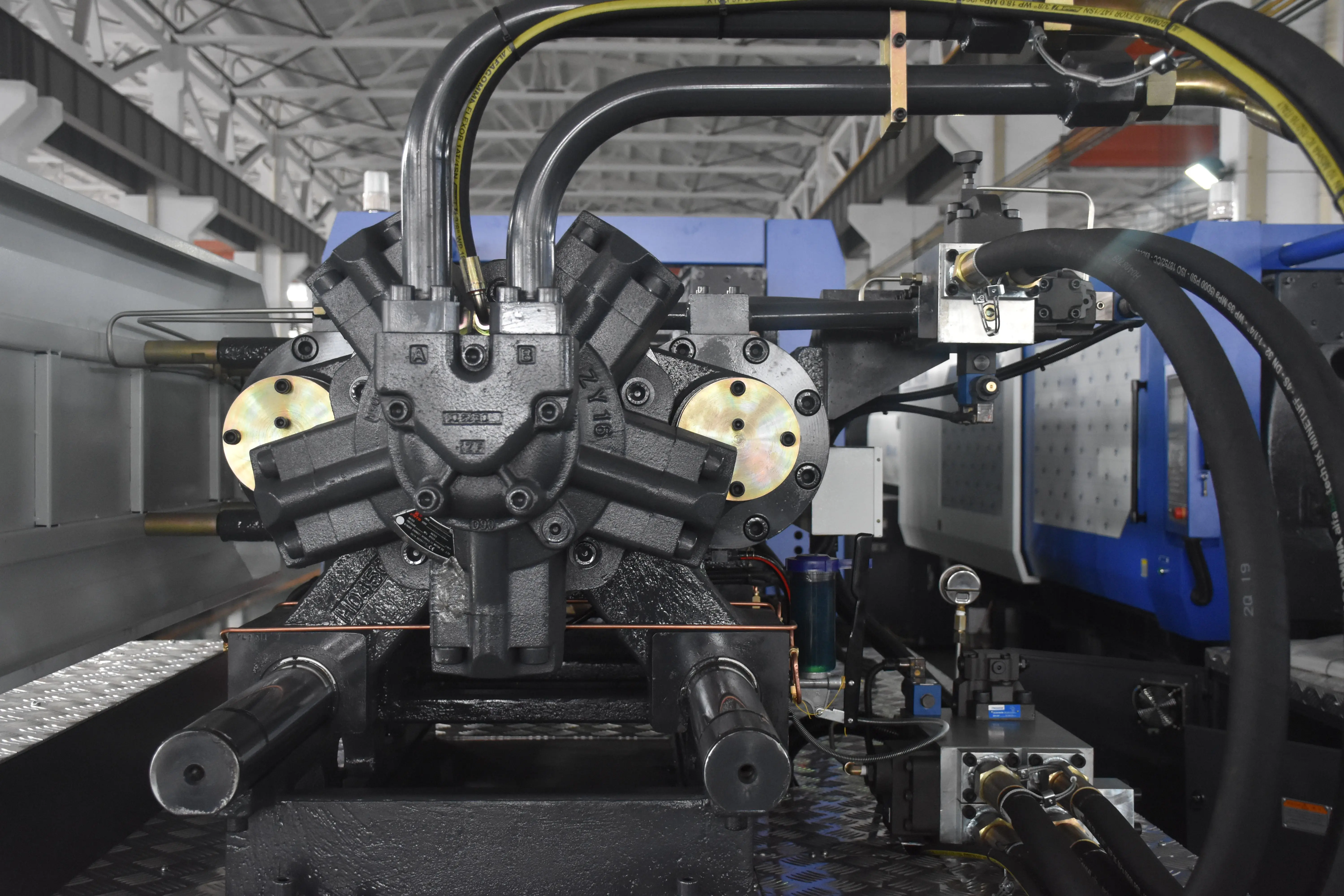

Hydraulic System

Ease Of Maintenance, Compact Structure

Low noise quantitative pump system The oil temperature deviation alarm function Tank level gauge Hydraulic oil cooling unit
