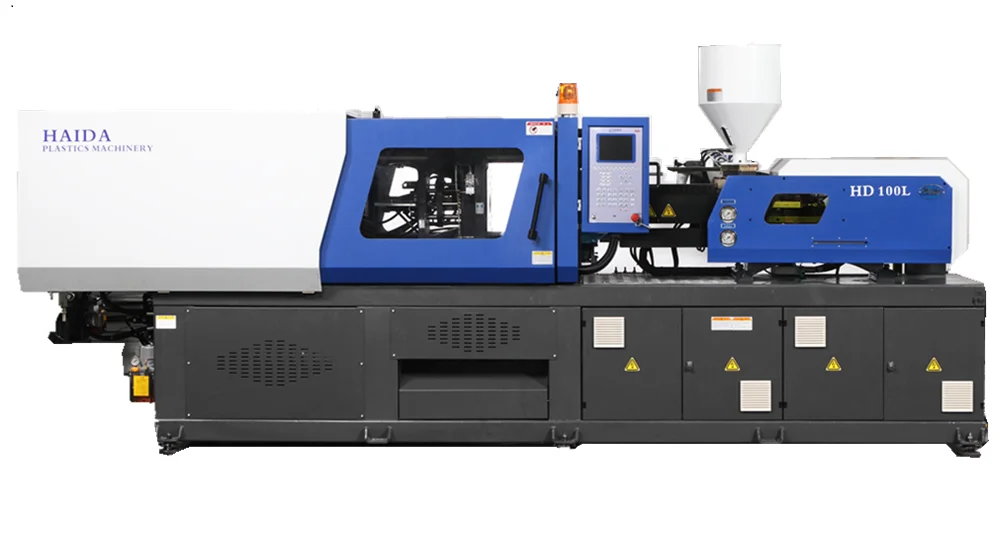

100ton 100t 1000kN High Precision Servo Motor Energy-Saving Plastic Injection Molding Moulding Machine

FOB Reference Price:Get Latest Price
$16,000.00 - $32,600.00 / Piece | 1 Piece/Pieces (Min. Order)
Clamping Force:
1000kN
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Style:
Horizontal
Condition:
New
Plastic Type:
Thermoplastic
Plastic Processed:
PP, ABS, PET, PVC, FRPP/PVC, PPR
Clamping Force (kN):
1000
Injection Rate (g/s):
100 g/s
Injection Weight (g):
166 g
Screw diameter (mm):
40 mm
Distance between Tie Bars:
370*370mm
Weight (KG):
3000
Machine Type:
Hydraulic
Type:
Preform Injection
Place of Origin:
Zhejiang, China
Model Number:
HD100L
Brand Name:
Haida
Automatic:
Yes
Certification:
CE,ISO9001
Power (kW):
11 kW
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
High-accuracy
Applicable Industries:
Manufacturing Plant
Product name:
Plastic Injection Moulding Machine
Machine weight:
3T
Machine dimension(L*W*H):
4.45*1.12*1.93m
Screw diameter:
35/38/40mm
SCREW L/D RATIO:
22.8/21/20
Voltage:
380V/ 50Hz 3P+N+E (alterable)
Heating power:
7.5kW
MOULD THICKNESS:
140-380mm
Ejector Stroke:
100mm
Ejector force:
31.4kN
Opening Stroke:
330mm
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden Pallet
Port
Ningbo
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description
100ton 100t 1000kN High Precision Servo Motor Energy-Saving
Plastic Injection Molding Moulding Machine

WIDER APPLICATION SCOPE

L series with strong inclusive platform continue and strive to improve various special requirements for configuration. Centered on customer demand, provide compressive and efficient solutions to meet various special requirements

for processing. Coexisted specificity and generality, screw of multiple diameters are optional for each model, to

realize optimized product quality. High precision, repeated accuracy, rapidity or dynamics, no matter which one you

need, you will be satisfied with L series which can meet

various technical requirements for injection.

SOPHISTICATED AND RELIABLE STABILITY

Accumulated decades of experience in design and

manufacturing, L series has advantages such as platen

with high strength, high rigidity, impact resistance, uniform stress distribution and less transformation, etc.

Toggle with oiling bush, equipped with centralized

automatic lubrication system to have better lubricating

effect and extend service life of joints. Adopt new frame

type structure to have more reasonable stress on

machine body, and strengthened column has improved

rigidity of wall effectively.

USER-FRIENDLY DEGISN

SIMPLE AND EFFECTIVE
Effectively improved injection seat, centering and fine

regulating device of nozzle, the users may center and

adjust the nozzle easily.

FAST AND FLEXIBLE
Various ejection mode; the ejection force and speed

may be set in accordance with product requirements, to

improve the rate of finished products. High-speed ejection can shorten the idle-running time significantly.

SIMPLIFIED CONTROL
Latest easily-operated controller for injection machine

has shorter response time, LCD display with eight-level

gray scales.


GREAT COST PERFORMANCE

EASY MAINTENANCE
Modular design of mechanism, oil circuit and wiring, make replacement easier.
SAFE AND ENERGY-SAVING
Standard hose safety chains, avoid accidents caused by
high-pressure hose explosion.
Adopt plastic machine serve pump system of world
famous brands to avoid unnecessary waste of pressure
flow; overall rapid reaction; precise and reliable; greatly
improved energy saving, save 30%-80% of electricity than traditional hydraulic system.
parameters
ITEM
UNIT
DATA
Injection Unit
Screw Diameter
mm
35
38
40
Screw L/D Ratio
L/D
22.8
21
20
Injection Volume
cm3
154
182
201
Shot Weight
g
140
166
183
Injection Pressure
Mpa
208
177
160
Clamping Unit
Clamping Force
kN
1000
Opening Stroke
mm
330
Mould Thickness(Min-Max)
mm
140-380
Space Between Tie-Bars
mm
370×370
Ejector Force
kN
31.4
Ejector Stroke
mm
100
General
Motor Power
kW
11
Heater
kW
7.5
Pump Pressure
Mpa
16
Machine Dimension
m
4.45×1.12×1.93
Machine Weight
T
3
Mould Orientation Ring Diameter
mm
Φ125
Nozzle Radius
mm
SR10
Applications
Detailed Images

Injection System

UPGRADE PERFORMANCE AND STABLE INJECTION
Optimized injection unit provides higher precision and
guarantee higher stability. More reasonable length-radial
ratio of screw, more powerful plasticizing capacity and
optional special screw of special engineering plastics
ensures optimized product quality. Integral guide rod
seat has is novel, pretty, firm and reliable, with faster, more stable and compact injection. Modular design can fully
meet individual processing requirements, and provides
more choices for customers

Clamping Systems

EFFICIENT OPERATION AND PRECISE POSITIONING
Adopt international advanced concepts to change
mechanical properties of clamping mechanism, to
reduce platen deformation significantly, and to improve
precision of finished product effectively. Greater space
between tie-bars, longer toggle stroke, great ejection space, and standard compulsive reset mechanism of ejector pin can meet requirements for compulsive reset for special
moulds. Moreover, rapid clamping platform can also
shorten molding cycle and improve production efficiency;
various hydraulic ejection mode; special technology
processing of tie bar; reliable strength.

Control System

All Monitoring, Full Control
Waterproof and dustproof sealed electric box, safe and
reliable; more powerful software function can meet various requirements for molding techniques; Reserved internet
management system and energy consumption display can realize remote real-time monitoring and maintenance
diagnosis on each injection machine, as well as advanced management such as reasonably arranged production, etc. Reserved energy consumption display may realize
statistics on real-time power under different operation
mode. The machine is also equipped with I/O detection
function for system hardware and self-correction function
for temperature departure of charging barrel.

Hydraulic System

Ease Of Maintenance, Compact Structure

Alarm for oiLtemperature departure; tank gauge; hydraulic oil cooler unit.
